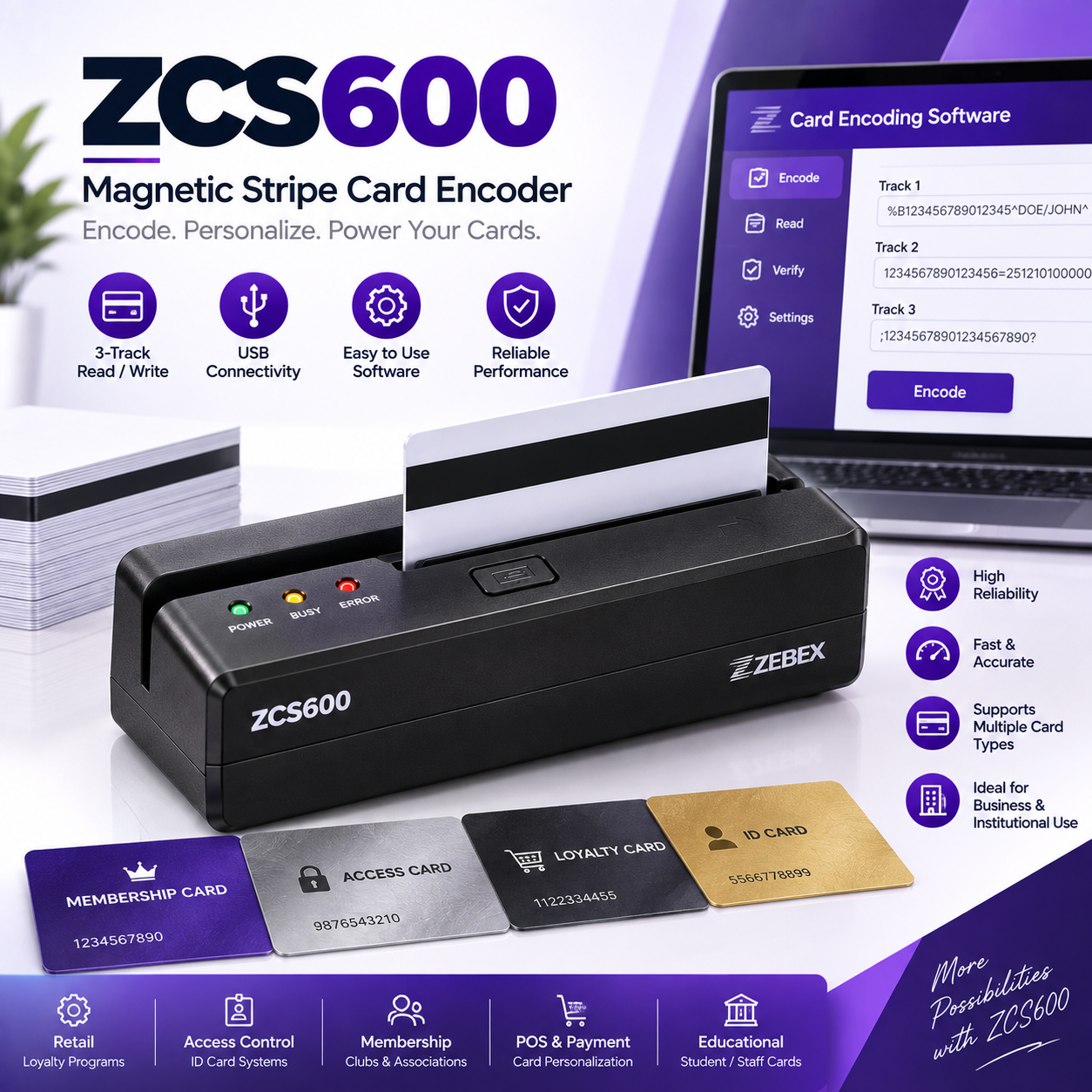

ZCS600 3-Track Magnetic Stripe Card Reader and Writer (HiCo/LoCo)
Description
The ZCS600 is a compact, reliable, and versatile magnetic stripe card encoding device designed to read, write, and erase data across all three standard magnetic tracks. Engineered for seamless integration, it connects via USB and supports both High Coercivity (HiCo) and Low Coercivity (LoCo) cards. This makes it an ideal solution for businesses managing access control, hotel electronic door locks, retail point-of-sale (POS) systems, loyalty programs, and employee identification.
Key Features
- Full Tri-Track Operation: Reads and writes information on Tracks 1, 2, and 3 with a single swipe.
- Dual Coercivity Support: Program both high-density HiCo cards (up to 4000 Oe) and standard LoCo cards (300 Oe).
- Plug-and-Play USB: Utilizes a standard USB interface for power and data transmission, requiring no external power bricks.
- Bi-Directional Swiping: Enhances operational efficiency by allowing cards to be read or written in either direction.
- LED Status Indicators: Built-in green and red visual indicators provide real-time feedback on successful or failed card operations.
Specifications
| Specification | Detail |
|---|---|
| Interface | USB 2.0 (Virtually simulates a serial COM port or USB HID) |
| Magnetic Tracks | Track 1 (210 BPI), Track 2 (75 BPI / 210 BPI), Track 3 (210 BPI) |
| Coercivity Range | 300 Oe to 4000 Oe (HiCo and LoCo auto-sensing/configurable) |
| Card Compatibility | ISO 7811, AAMVA, CA DMV, and most standard magnetic formats |
| Swipe Speed | 10 to 120 cm per second |
| Operating Lifespan | Minimum 500,000 passes for both read and write heads |
| Power Supply | +5V DC via USB port (No external power adapter required) |
| Operating System | Windows (XP through Windows 11), Linux, and macOS |
Functions
- Data Encoding: Formats and writes alphanumeric or numeric data strings securely onto magnetic strips.
- Data Verification: Automatically reads back written data immediately after a swipe to verify successful encoding.
- Card Erasing: Completely wipes existing data on all three tracks, allowing cards to be recycled or rewritten.
- Database Syncing: Integrates with proprietary software to link encoded card IDs directly to customer or employee profiles.
