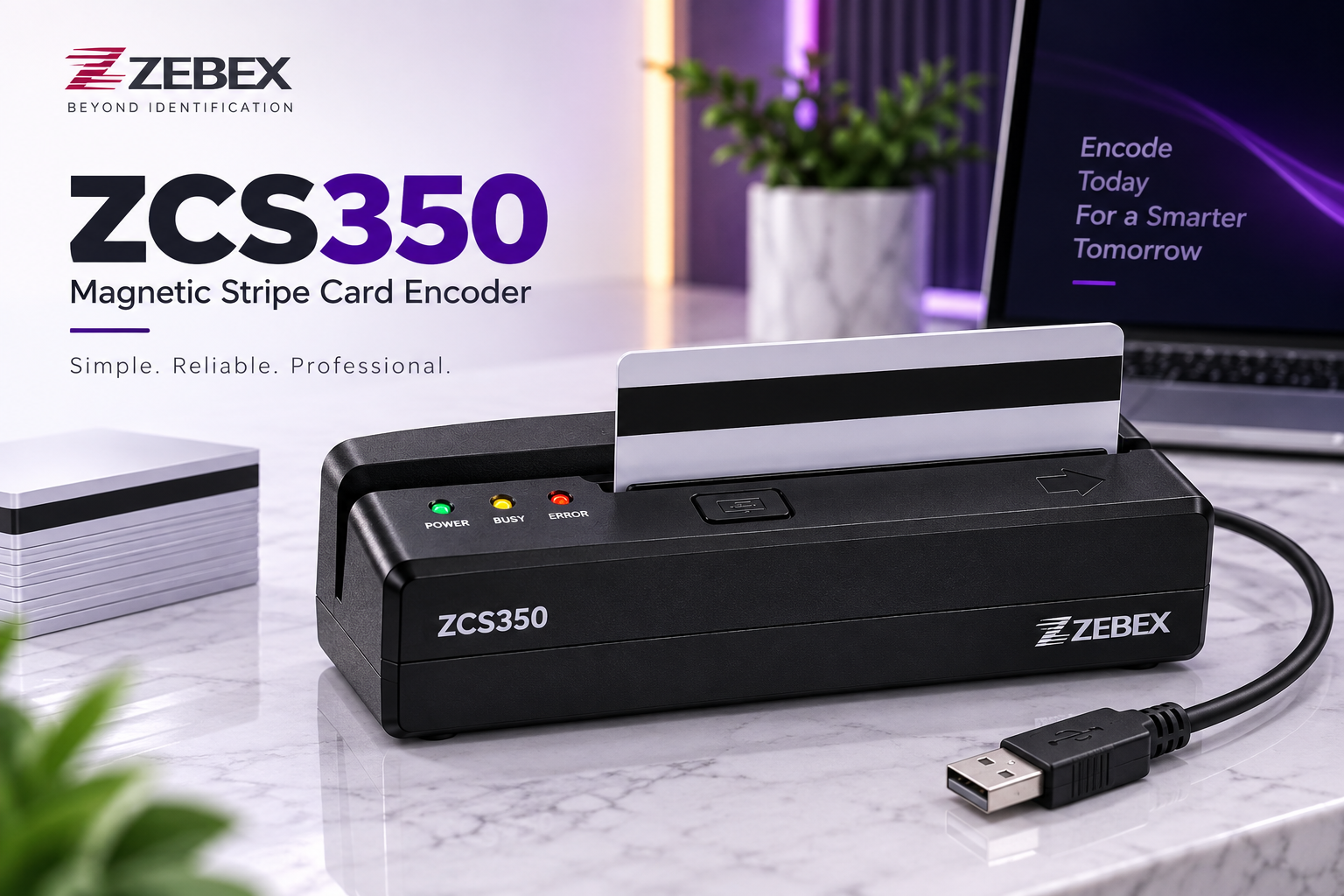

ZCS350 4-in-1 Magnetic Stripe Card Reader Writer & Smart IC/NFC RFID Card Encoder

Categories: Magnetic Stripe Card Encoders, Magnetic Stripe Card Reader Writers

Description
Reviews (0)

Description

The ZCS350 is a highly compact, multi-functional desktop card reader and encoder designed for secure data collection and card programming. It combines four essential functionalities into a single USB peripheral: reading and writing standard magnetic stripe cards, programming contact IC smart cards, and handling PSAM and contactless RFID/NFC cards. This plug-and-play device eliminates the need for multiple readers, making it a space-saving solution for retail point-of-sale (POS) terminals, banking systems, medical data tracking, and access control management.

Key Features

4-in-1 Versatility: Seamlessly handles magnetic tracks, contact IC chips, RFID/NFC frequencies, and PSAM security modules.
Plug-and-Play USB Interface: Emulates a standard USB communication port for hassle-free connection without complex driver installations on modern systems.
Dual-Directional Swiping: Reads magnetic stripe cards reliably regardless of swipe direction (left-to-right or right-to-left).
Compact Footprint: Minimal desktop space requirement with integrated anti-skid rubber feet.
LED & Buzzer Indicators: Built-in green/red status light and audible programmable buzzer for instant transaction feedback.

Technical Specifications

Interface: USB 2.0 (Full Speed), USB-powered (5V DC, approx. 100mA).
Magnetic Card Performance:
- Tracks: Reads and writes Tracks 1, 2, and 3.
- Coercivity Compatibility: Supports both High Coercivity (Hi-Co) and Low Coercivity (Lo-Co) stripes (300 to 4000 Oe).
- Standards: ISO 7811, AMMVA, CADMV compliance.
Contact Smart Card Performance:
- Standards: ISO 7816 compliance.
- Supported Chips: SLE5542, SLE5528, AT24C01A/02/04/08/16/32/64, and common CPU cards.
Contactless/NFC Performance:
- Frequency: 13.56 MHz.
- Standards: ISO 14443 Type A & B.
- Supported Chips: MIFARE 1K, MIFARE 4K, MIFARE Ultralight, NTAG series.
Operating System Support: Windows (XP/7/8/10/11), Linux, and Android.
Dimensions: Approximately 160mm x 45mm x 45mm.

Core Functions

Magstripe Encoding: Writing user data, loyalty points, or security credentials onto blank magnetic tracks; reading encrypted card data.
Smart Card Programming: Reading and overwriting hotel key cards, membership chips, or secure employee badges.
NFC Data Transmission: Simulating and programming NFC tags for mobile interactive tasks or contactless payment verification.
Secure Access Verification: Using the internal PSAM slot for high-security applications like cryptographic processing in financial or government networks.
