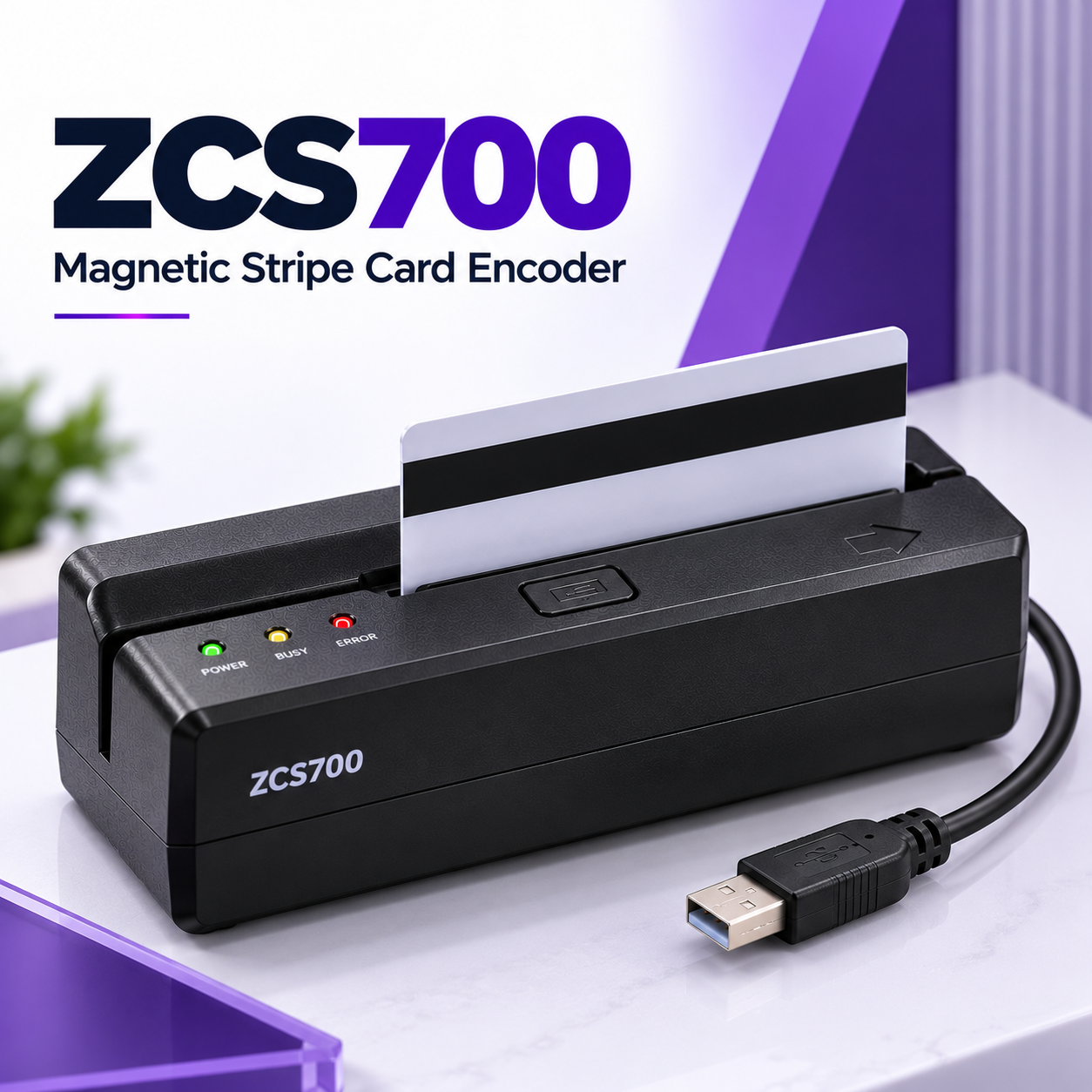

ZCS700 Magnetic Stripe Card Reader, Writer & Encoder

Original price was: $199.00.Current price is: $129.00.

Categories: Magnetic Stripe Card Encoders, Magnetic Stripe Card Reader Writers

Description
Reviews (0)

Description

The ZCS700 is a highly versatile, manual swipe card reader and writer designed to read and write magnetic stripe data across multiple tracks. It provides a reliable and cost-effective solution for businesses requiring card customization, data verification, or access control management. Operating via standard USB connectivity, it seamlessly bridges hardware encoding with desktop software applications.

Key Features

Tri-Track Capability: Reads and writes tracks 1, 2, and 3 simultaneously.
Dual Coercivity: Supports both high-coercivity (HiCo) and low-coercivity (LoCo) magnetic stripes.
Bi-directional Operation: Efficiently reads card data whether swiped forward or backward.
Status Indicators: Equipped with built-in LED lights and a buzzer to provide immediate visual and audio success cues.

Technical Specifications

Interface: USB (Virtual COM or HID keyboard emulation).
Coercivity Range: 300 to 4000 Oe (Oersteds).
Head Lifetime: Rated for minimum 1,000,000 passes.
Data Standard: Fully compliant with ISO 7811 formatting guidelines.
Power Source: Directly powered via the USB bus (+5V DC); no external power supply required.

Primary Functions

Data Encoding: Writes raw binary or alphanumeric strings onto empty or erasable magnetic card stripes.
Card Duplication: Reads an existing card profile and writes identical track datasets onto duplicate cards.
Data Erasing: Completely clears recorded tracks on reusable magnetic media.
Data Validation: Compares written card data against source files to confirm error-free encoding.

Reviews

There are no reviews yet.

Be the first to review “ZCS700 Magnetic Stripe Card Reader, Writer & Encoder”

Technical Specifications

Track Capabilities	Track 1 (210 bpi), Track 2 (75 / 210 bpi), Track 3 (210 bpi)
Standard Compliance	ISO 7811, 7812, 7813, AAMVA, CA DMV
Coercivity Range	Dual Support: Hi-Co (2750~4000 Oe) & Lo-Co (300 Oe)
Swipe Direction & Speed	Manual Single Direction \| Read: 5~55 ips, Write: 5~35 ips
Magnetic Head Lifespan	Minimum 1,000,000 passes (approx.)
Communication Interface	USB 2.0 / USB 3.0 (Virtual COM Port / HID compatible)
Power Requirement	+5V DC supplied directly via USB port (No external power brick required)
Supported OS	Windows 11, 10, 8.1, 7, XP & macOS (Intel & M-Series)
